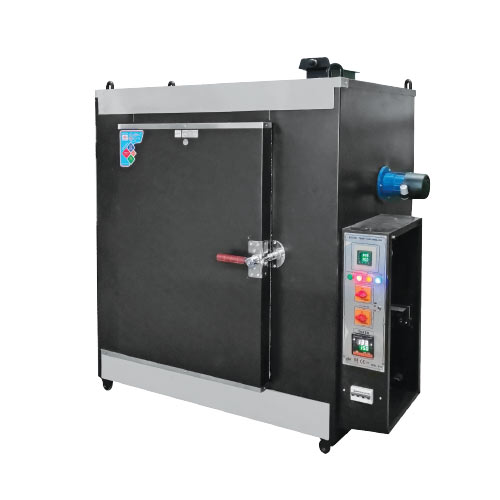

High Tempertaure Oven Maximum Temperature Range 500°c

High Tempertaure Oven Maximum Temperature Range 500°c

NSW-146

Click on the icon to download details

CATEGORY: OVENS

CONSTRUCTION:

  • Triple walled, inside Stainless Steel 304 qlty
  • Outside made of Mild Steel painted in epoxy Powder Coating.
  • The door has asbestos rope / synthetic rubber gasket.
  • Insulation of 125mm by mineral wool.
  • Temperature 100°C to 500°C ± 5°C, Working Temperature upto 480°C
  • Microprocessed Digital Indicator cum Controller with LED display
  • Heating Elements are placed on both sides.
  • Complete with 2/3 nos removable S/S Wire Mesh shelves.
  • One no. Air Circulating Fan, ON/OFF Switch
  • To work on 400/440V AC, 50 Hz.

SIZE INSIDE CHAMBER (STAINLESS STEEL 304 QLTY)

MODEL SIZE (MM)
W       D      H
LTRS RATING
HTO -6 355 x 355 x 355 45 3.0 KW
HTO -7 455 x 455 x 455 95 6.0 KW
HTO -8 455 x 455 x 605 125 6.0 KW
HTO -9 605 x 605 x 605 224 9.0 KW
  HTO -10 605 x 605 x 910 336 9.0 KW

OPTIONAL:

  • Microprocessed PID Controller having 4 ramp & 4 soak profile having set mode, alarm parameter, configuration parameter, profile
    parameter, set point profile, PV error indicator, parameter for locking etc. to cost extra.
  • Alarm: It is possible to provide electronic alarm if, temperature deviates more than ± 5°C to cost extra.
  • Automatic timer electronic 999 mts. to cost extra.
  • Data logger 4/8 channel temperature recording with basic software and RS-485 PC communication,
    data can be collect through USB Port to cost extra.

MAIN APPLICATION :

  • Drying
  • Sterilizing
  • Heating
  • Baking
  • Evaporating
  • Annealing
  • Testing

INDUSTRIES CATERED :

  • High Temperature Oven for Laboratory
  • High Temperature Oven for Research
  • High Temperature Oven for Medical
  • High Temperature Oven for Manufacturing
