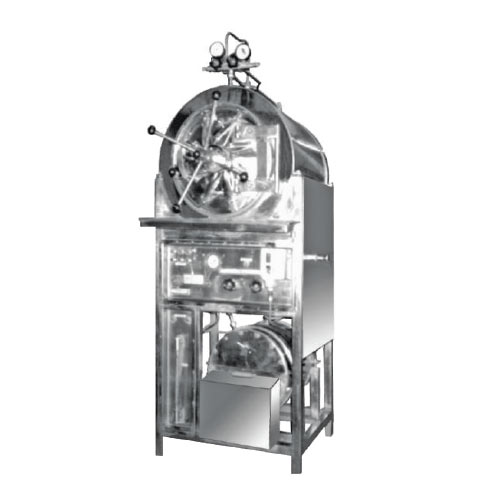

Horizontal Autoclave Complete Made Of Stainless Steel 304 Qlty.

Horizontal High Pressure Cylindrical Steam Sterilizer Complete Made Of Stainless Steel 304 Qlty.

NSW-235

Click on the icon to download details

CATEGORY: AUTOCLAVES

STERILIZER IS USED IN:

  • Medical agricultural
  • Pharmaceuticals.
  • Hospital dressing linen, rubber,
  • Plastic goods,
  • Surgical instruments, glassware etc

Construction:

  • Triple walled steam jacket with separate boiler
  • All construction is made up of heavy gauge Stainless Steel 304 qlty.
  • Outer jacket is wrapped with mineral wool to minimize the heat loss.
  • These are tested to 2.5 times of working pressure.
  • Insulation: 63mm mineral wool.
  • Steam generator is made of heavy gauge stainless steel sheet.
  • Pressure control device: It cuts of the power supply to heater when the set pressure is achieved.
  • With heating elements.
  • “Multiport valve” fitted at front top.
  • Two speed of steam exhaust are available fast and slow.
  • A moisture trap is fitted in the chamber.

SAFETY FEATURES

  • Provided with automatic vacuum breaker
  • The sterilizer is provided with the triple safety features.\
  • At the boiler level by a piezostat.
  • A steam trap is fitted in the chamber discharge line to eliminate the condensate automatically.
  • Fully automatic by Microprocessed PID Controller which will have following features:-
  • Can be operated on manual mode either or fully automatic mode
  • Auto purging:- Set Temp.
  • Purging Stop :- Set Temp.
  • Auto Exhaust : - Cool
  • Elapse Time
  • Set Temperature :- Could be set
  • Facility for temp. control
  • Auto cycle stop
  • Buzzer At cycle over

STERILIZING TEMP 121ºC
STERILIZING PRESSURE 1.2 TO 1.5 KG./ CM (15 PSI TO  22 PSI)
POWER 440 V 3 PHASE 50 HZ A.C. SUPPLY

SIZE INSIDE CHAMBER:

MODEL SIZE
Dia   Depth
LTRS RATING
HHP-1 400  x  600 mm 80 6.0 KW
HHP -2 455  x  600 mm 100 6.0 KW
HHP -3   400  x  1200 mm 160 9.0 KW

Option:

  • Thermograph to record sterilizing temp. and time
  • Door at back also to cost extra
  • PLC/HMI version display and control with Data logger, 8 channel recorder with basic software and RS-485
    PC communication alternatively with 21 CFR software to cost extra.
  • Stainless Steel Carriage made of 304 qlty. to cost extra
  • Stainless Steel Trolley made of 304 qlty. to cost extra

MAIN APPLICATION :

  • Sterilisation of surgical instruments
  • Dressing material
  • Plastic Material etc

INDUSTRIES CATERED :

  • High Pressure Sterilizer for Medical Agricultural
  • High Pressure Sterilizer for Pharmaceuticals
  • High Pressure Sterilizer for Hospitals
  • High Pressure Sterilizer for Plastic Industries etc
