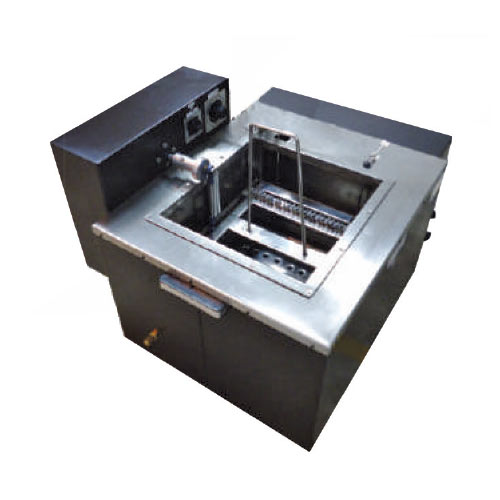

High Temp. Oil Bath (Heat Stability Apparatus)

High Temp. Oil Bath (Heat Stability Apparatus)

NSW-199 D

Click on the icon to download details

OIL BATH

  • This bath is generally used in study of dairy effluent of various products on the basis of oil & grease value.
  • Outer made of Mild steel duly powder coated.
  • Inside made of stainless steel.
  • Temp. Range: 50 to 250°C plus minus 1°C.
  • With Microprocessed Electronic Digital Temp. Controller cum indicator.
  • The Chamber has provision to heat 24 Nos. stability tubes of size 8ml.
  • It has shaking oscillation device with 5 RPM. Approx.
  • With stirrer, shelves & 1 no. shaking rack.
  • To works on 220V AC 50 Hz.

SIZE INSIDE CHAMBER

MODEL SIZE (MM)
L       W      H
LTRS RATING
HTOB-1 355 x 355 x 250 32 1500 W
HTOB-2 455 x 355 x 250 40 1500 W

OPTIONAL:

  • Microprocessed PID Controller having 4 ramp & 4 soak profile having set mode, alarm parameter, configuration parameter, profile parameter,set point profile, PV error indicator, parameter for locking etc. to cost extra
  • Alarm: It is possible to provide electronic alarm if, temperature deviates more than ± 2°C. to cost extra
  • Digital display Automatic timer electronic 999 mts to cost extra.

MAIN APPLICATION :

  • Oxidation stability test on oil and greases

INDUSTRIES CATERED :

  • High Temperature Oil Bath for Chemical
  • High Temperature Oil Bath for Petrochemical Industry
  • High Temperature Oil Bath for Electronic Industry etc.
