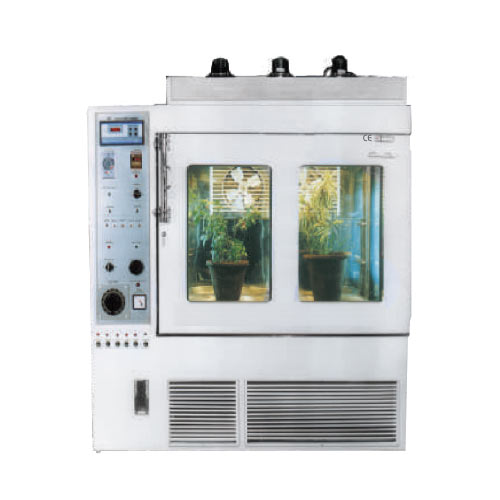

Plant Growth Chamber "Caltan” (Large Chamber)

NSW-193

Click on the icon to download details

Plant Growth Chamber

  • Useful for Plant Growth & Animal Studies.
  • This chamber is doubled walled with insulation of 75mm glass wool by puff
  • Inner chamber Stainless Steel 304 Qlty
  • Outer chamber Mild Steel and finished with durable white enamel paint.
  • Full view inner acrylic door for inspection of samples without disturbing the temp of working chamber.
  • The chamber shall be mounted on castors for smooth shifting.
  • Supplied with three nos. heavy-duty stainless steel shelves.
  • Viewing window having dimension 35cm x 35cm shall be given on the two sides
  • With fluorescent tube lights
  • If you want to switch off the tube light natural light may be given in the chamber from two sides.

PHOTOPERIODIC SYSTEM:

  • Temperature is controlled by temperature micro processed based Electronic Indicator Cum Controller to regularize the two temp. one for day and one for night by dual temperature controller.
  • With micro processed based 7 days programmable Timer.
  • Temperature can be controlled. from 15ºC to 60ºC in the day time when full lights are on.
  • Otherwise temperature range is 5ºC to 60ºC

LIGHTING SYSTEM:

  • The chamber has provision to give Light up to 50K Lux (50,000 Lux) from the top and side of the chamber.
  • It gives microclimate radiation stimulated spectrum adjustable 50K Lux.
  • Light intensity may be given on higher side if required.
  • We give mixture of light by incandescent lamp, fluorescent lamps and sodium vapor lamps.

COOLING SYSTEM:

  • Hermetic sealed compressor with all accessories & condenser is also fitted at bottom exactly below the working chamber to give efficient cooled desired temperature.

COOLING SYSTEM:

  • Humidity in the chamber is controlled from 55% to 95%
  • By Digital RH controller and injection of water vapour inside chamber thus making the environment in controlled condition
  • Inbuilt 3 step Automatic voltage Stabilizer
  • To work on 220V AC, 50 Hz

DIMENSION OF CHAMBER INSIDE

MODEL CU.FT SIZE (MM)
W       D      H
LTRS RATING
PGDC-1 24 Cu.Ft 1200 x 600 x 900 680 6.0 KW

OPTIONAL:

  • The above growth chamber can be supplied with a PLC/HMI controller which will take out prints of the chamber for the light. Humidity & temperature set and measured in the interval of 1 minute having 8 K memories on your 80 column matrix printer to cost extra.
  • Alarm: It is possible to provide electronic alarm if, temperature deviates more than ± 2°C. and RH ± 5% to cost extra

MAIN APPLICATION :

  • Creating Artificial Environment

INDUSTRIES CATERED :

  • Plant Growth Chamber for Biotechnology
  • Plant Growth Chamber for Seed Germination
  • Plant Growth Chamber for Agriculture Research
