Split Tube Furnace Single Zone

Split Tube Furnace Single Zone

NSW-104

MULTI USE VERTICAL OR HORIZONTAL:

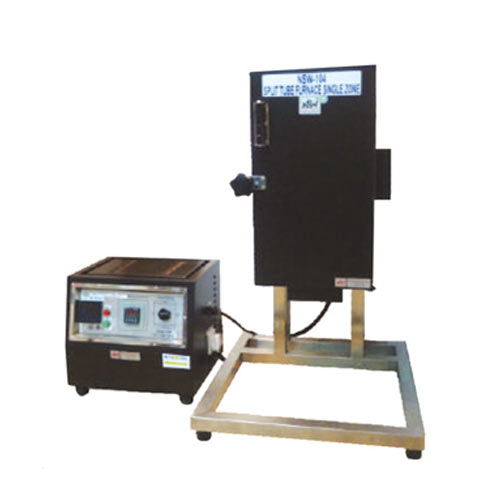

The NSW Split Tube Furnace comprise a furnace body which is mounted on a vertical stand and is hinged so as to split into two halves along its length. The free standing vertical design is ideal 900°C for wrap around heating applications such as extension test rings or vertical reaction tubes. The NSW split furnace is also available as a lower temperature version with 900°C maximum operating temperature. Usually required but does not include an appropriate accessory work tube.
Internal Dia 1.5 inch to 3 inch diameter.

Send Enquiry

Download PDF

Click on the icon to download details

CATEGORY: HIGH TEMPERATURE INDUSTRIAL FURNACES

Standard Features:

900°C. maximum operating temperature.
Heated tube length of 455mm having working zone 150mm.
Furnace split into two halves to accommodate reactor vessels, large workpieces or samples fixed into a test rig.
Supplied in near hinge configuration complete with stand.
Over temperature protection from secondary controller.
Standard long life ceramic long life fiber working tube.
Consists of 2.5KW rating.
Micro processed PID Controller having 4 ramp & 4 soak profile having set mode, alarm parameter, configuration parameter, profile parameter, set point profile, PV error indicator, parameter for locking etc.

Main Application :

Purification
Coating
Drying
Hardening

Industries Catered :

Split Tube Furnace for Laboratory.
Split Tube Furnace for Hospital.
And many more..

Model: NSW-104
