tray dryer (for seed, leaves, vegetables & fruit drying)

Tray Dryer (For Seed, Leaves, Vegetables & Fruit Drying)

NSW-148 B

Click on the icon to download details

CATEGORY: OVENS

CONSTRUCTION:

  • This is tripled walled, inside and outside mild steel, outer painted in dark chocolate color.
  • Trays are made of Aluminium having size 800 x 400 x 30mm.
  • Insulation between the two walls is filled with mineral wool.
  • It is fitted with Microprocessed Electronic Digital temperature indicator cum controller and circulation fan also to get uniform temperature form plus/minus 3°C. above ambient to 250°C.
  • These dryer are available in capacity of 12, 24, 48, 96 & 192 trays
  • To work on 220/440V AC.

MODEL SIZE (MM)
W     D       H
No. of trays
TDMS-1 425 x 835 x 910 mm 12
TDMS-2 910 x 835 x 910 mm 24
TDMS-3 1420 x 3475 x 1420 mm 48
TDMS-4 1420 x 1665 x 1420 mm 96
TDMS-5 1420 x 3425 x 1420 mm  192

OPTIONAL:

  • Microprocessed PID Controller having 4 ramp & 4 soak profile having set mode, alarm parameter, configuration parameter, profile parameter, set point profile, Pv error indicator, parameter for locking etc. to cost extra.
  • Alarm: It is possible to provide electronic alarm if, temperature deviates more than ± 5°C to cost extra
  • Electronic Hooter (three tone) to cost extra.
  • Automatic timer electronic 9999 mts to cost extra.
  • Extra price for Inner chamber & Outer Chamber SS-304 Qlty or SS-316 Qlty to cost extra.

MAIN APPLICATION :

  • Drying
  • Sterilizing
  • Heating
  • Baking
  • Evaporating
  • Annealing
  • Testing

INDUSTRIES CATERED :

  • Tray Dryer for Laboratory
  • Tray Dryer for Research
  • Tray Dryer for Medical
  • Tray Dryer for Manufacturing

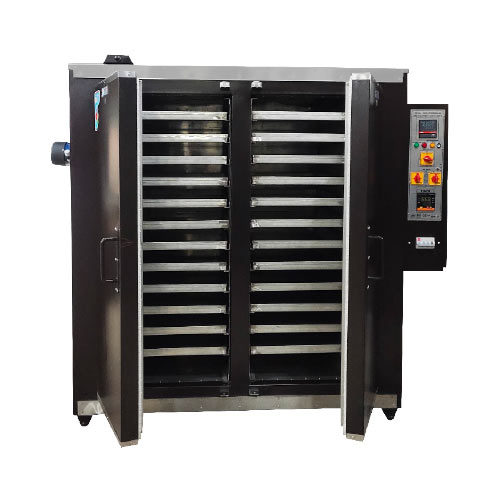

Tray Dryer (for Seed, Leaves, Vegetables & Fruit Drying)-img2

Model: NSW-148 B
